Features
Modern & Stylish
A stylish slim line single
piece unit incorporates a
top-mounted
compressor with
compact footprintÂ
Highly Efficient
Generates considerably
more heat energy than the
energy consumed, leading
to savings on purchased
energy.Â
Handy Controller
Providing intuitive
operation & helpful
functions such as temp
setting, timer & safety lock
Built in Frost Protection
rotecting the condenser
from icing for complete
peace of mind
Energy Efficiency
Did you know?
Water heating accounts for nearly a quarter of the energy use and greenhouse gas emissions in the average kiwi home.
Smart Technology
Heat pumps utilise an ingenious technology to efficiently transfer thermal energy directly from the surrounding air and into the water, and so do not rely on direct sun or fossil fuels to provide an energy source.Â
Heat Pump Selection
Heat Pump Selection
With a Carrier IHW heat pump, set up and operation monitoring is made simple thanks to an amazing, in built user-friendly controller.
Operational modes
ECO (Heat Pump Only) mode: The standard mode where the highest efficiency is achieved.
Hybrid Mode: The Heat Pump and Eheater operate together to ensure the set temperature is achieved.
E-Heater: When the air temperature drops to below 5°C, the heat pump will automatically select E-heater mode for an electric hot water boost.

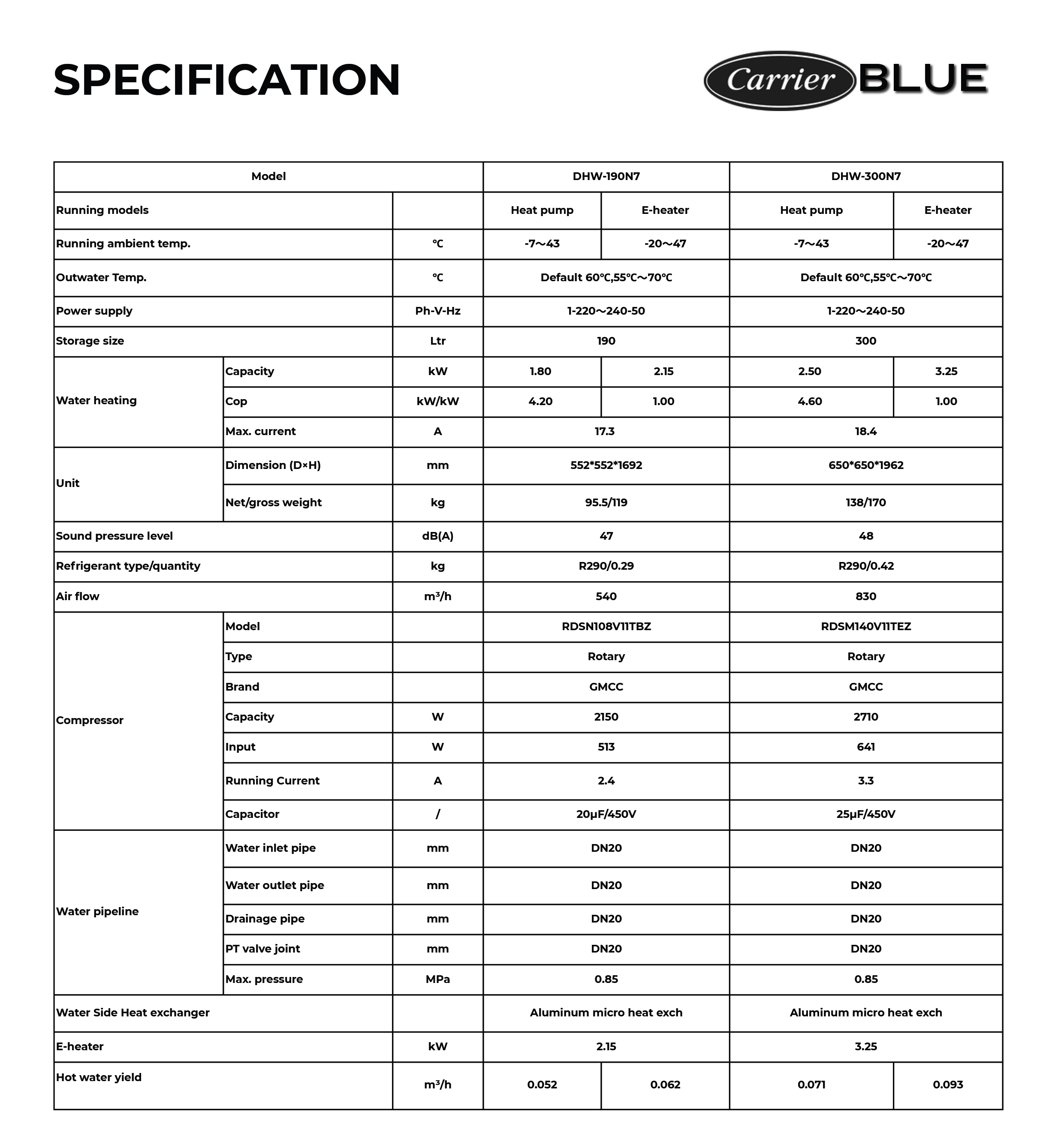

Specifications
DHW-190N7 - Heat pump
Running ambient temp.
℃ -7～43
Outwater Temp.
Default 60℃,55℃～70℃
Power supply
Ph-V-Hz - 1-220～240-50
Storage size
Ltr - 190
Water heating
Capacity
kW 1.80
Cop
kW/kW 4.20
Max. current
A 17.3
Unit
Dimension (D×H)
mm 552*552*1692
Net/gross weight
kg 95.5/119
Sound pressure level
dB(A) 47
DHW-190N7 - E-heater
Running ambient temp.
℃ -20～47
Outwater Temp.
Default 60℃,55℃～70℃
Power supply
Ph-V-Hz - 1-220～240-50
Storage size​
Ltr - 190
DHW-300N7 - Heat pump
Capacity
Rated water capacity: 330L
Total water capacity: 338L
Product dimensions
Depth: 758mm
Height: 1941mm
Packaged height: 2263mm
Packaged weight: 150kg
Packaged width: 745mm
Product weight: 122kg
Product weight (filled): 452kg
Width: 710mm
Warranty
Inner cylinder only: 7 years
Inner cylinder only (Commercial): 1 year
Parts and labour: 5 years
Parts and labour (Commercial): 1 year
Performance
Ambient temperature working limits (Heat Pump only): -7°C to 45°C
Ambient temperature working limits (Total appliance): -7°C to 45°C
Heat pump refrigerant mass: 0.47kg
Heat pump refrigerant type: R290
Maximum output water temperature (Heat pump only): 65°C
Maximum output water temperature (Total appliance): 75°C
Noise emissions: 47dB
DHW-300N7 - E-heater
